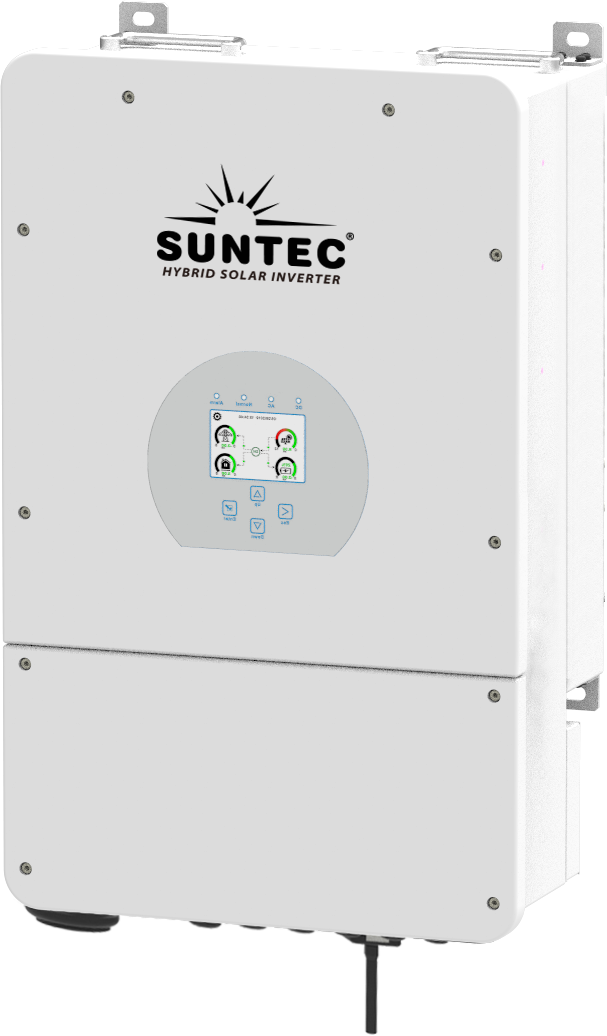

Suntec® 10KW Hybrid Inverter

J$300,000.00

Suntec® 10000W Single Split Phase Solar Inverter 48V DC to 100V AC~240V AC, 10KW Off-Grid Pure Sine Wave Hybrid Inverter with 200Amp MPPT Charge Controller, Work with 48V Lead Acid and Lithium Battery

About this item

【10KW Solar Inverter】This is a solar inverter with both single-phase and split-phase functions. Is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility charging and energy storage, AC sine wave output. It adopts DSP control and features high response speed,reliability, and industrial standard through an advanced control algorithm.

【14 Smart Protection Functions】: Multiple intelligent protections, such as PV input current/power limiting protection, PV input over-voltage, PV night reverse current protection, AC input over-voltage protection, AC input under-voltage protection, etc.

【Technical Specifications】: Max.PV array power:11000W, Max.MPPT Charging Current:200A, Rated Output Power:10000W, Max.Peak Power:20,000W, Rated Output Voltage:120/240Vac（split phase/single phase） , Max.Voltage of Open Circuit:500Vdc.Embedded Interfaces:RS485 / CAN / USB / Dry contact.

【Dual MPPT/Battery Type】: Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.Compatible with various batteries such as AGM, Gel, Lead-acid, Lithium-ion and LiFePO4 batteries, and supports battery-free. With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the li-ion battery.

【Single/Split-phase mode】: In split-phase mode: Output Voltage Range (L-N): 100～120Vac, 120Vac default, Output Voltage Range (L-L): 200～240Vac, 240Vac default. In single phase mode: Output Voltage Range (L-N): 100～120Vac, 120Vac default.

【Time-slot charging/Discharging function】:The POW-SunSmart series is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.

【Charging/AC output mode】: 4 AC output modes: Utility Priority Output, Solar and Utility Hybrid Output, Solar Priority Output, Inverter Priority Output. 4 battery charging modes: Hybrid Charging, Utility Priority Charging, Solar Priority Charging, Only Solar Charging.
