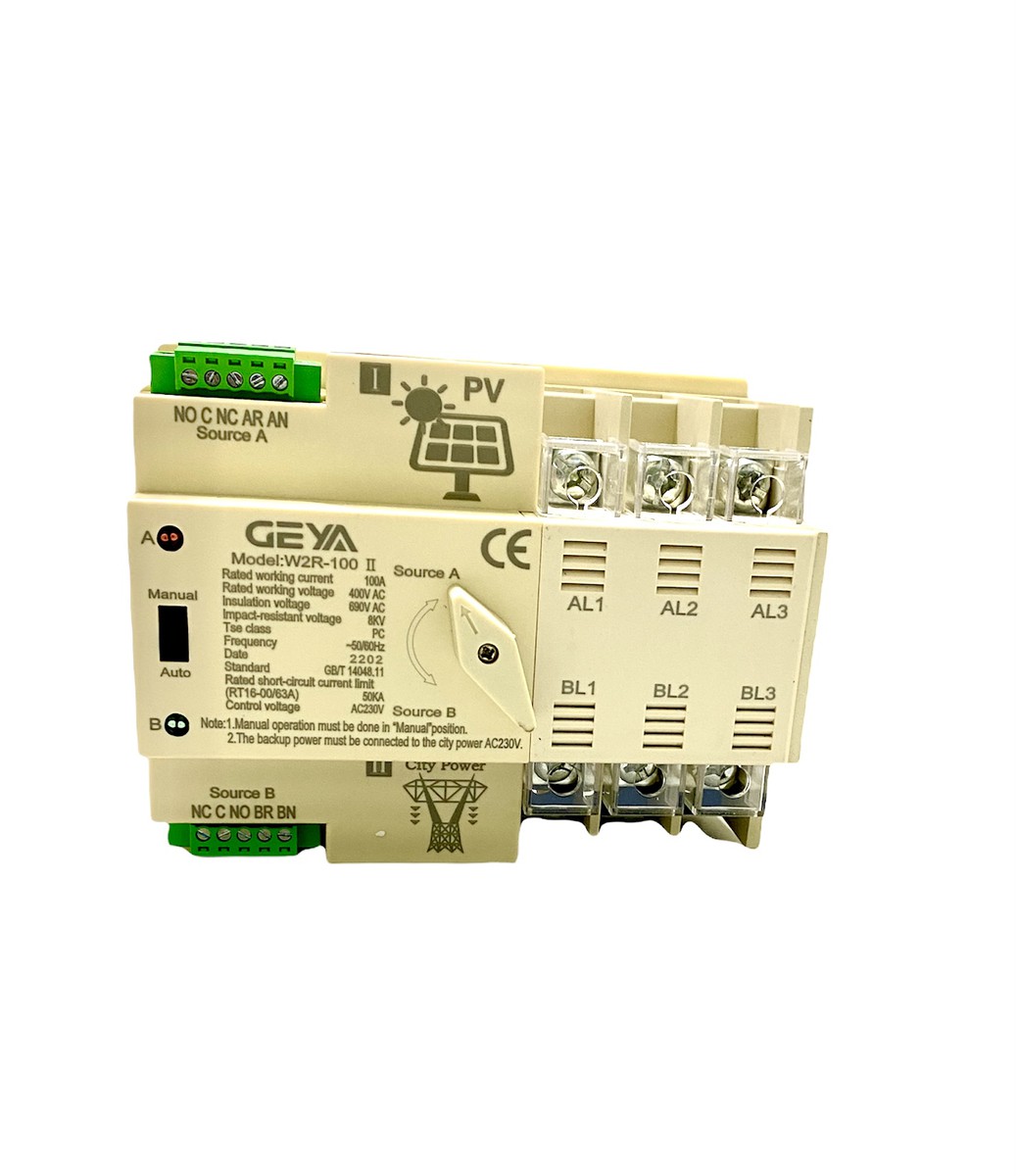

GEYA W2R-3P Din Rail Mounted Automatic Transfer Switch Three Phase ATS 100A Power Transfer Switch
W2R series dual power automatic transfer switch is new developed micro household power transfer switch.. The switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuity, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in PZ30 power distribution box.
W2R series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternating current rated 400V 60A. TSE is compact in structure, reliable in transfer, convenient in installation and maintenance, and has long life expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually.
ATSE is composed of TSE and the controller. ATSE compiles with requirements of Low-voltage Switch Gear and Control Gear specified by GB/T14048. 11, Part 6-1 : Multiple functional equipment and transfer switch equipment.
Type: Molded Case
Model Number: W2R ATS 3P
is customized: Yes
Product name: Dual Power Automatic Transfer Switch ATS
Insulation Voltage: AC 690V
Rated Voltage: AC 400V
Rated frequency:50/60Hz
Rated current in: 100A
Mounting: Din Rail
