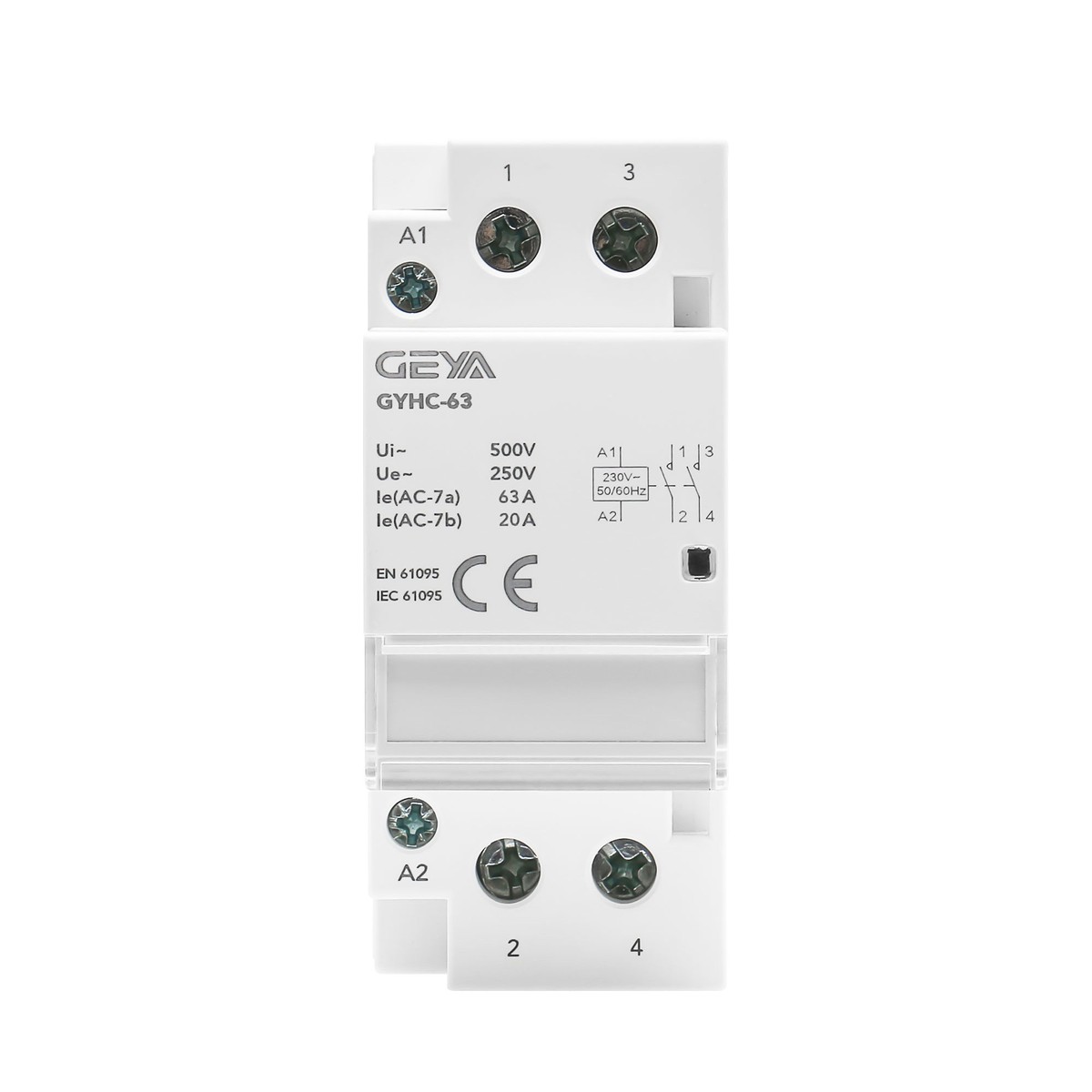

GYHC-63 2P 2NO Modular Contactor Motor Contactors Household AC Contactor Portable Electronic Component Module 230V 50Hz

Specification:

Item Type: Modular Contactor

Type: 2P

Control Voltage: 230v

AC-7a Rated Current: 63A

AC-7b Rated Current: 20A

Electric Shock: 2NO

Frequency: 50Hz

Electrical Life: 100000 times

Maximum Number of Switch Operations Per Day: 100 times

Insulation Voltage: 600V AC

Pollution Degree: 2

Rated Impulse Withstand Voltage: 4kv

Protection Level:

1. Contactor Body: IP20

2. Installed In Distribution Box: IP40

Working Temperature: -5℃~+60℃

Storage Temperature: 40℃-+70℃

Humidity And Heat Resistance: Class 2 (at a temperature of 55℃, the relative humidity is 95%)
