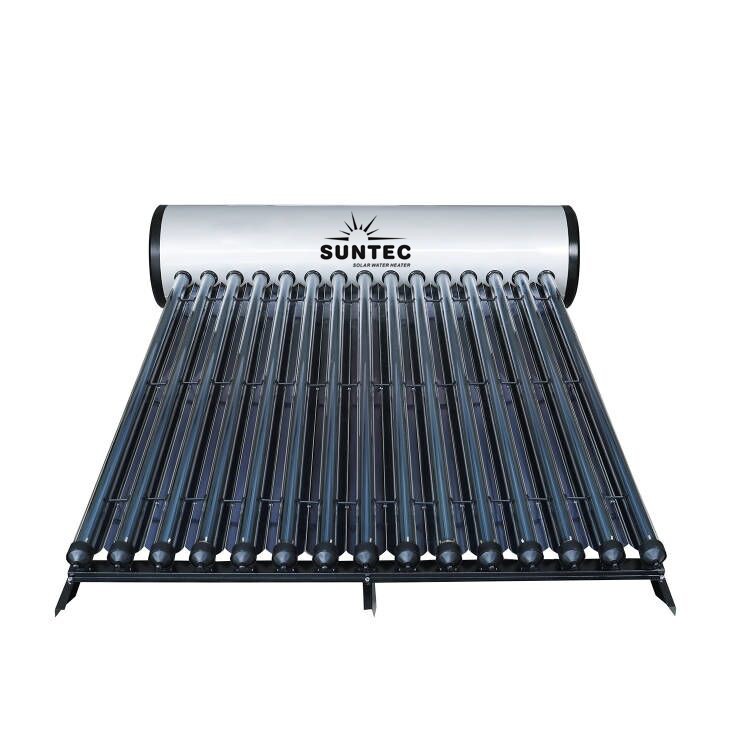

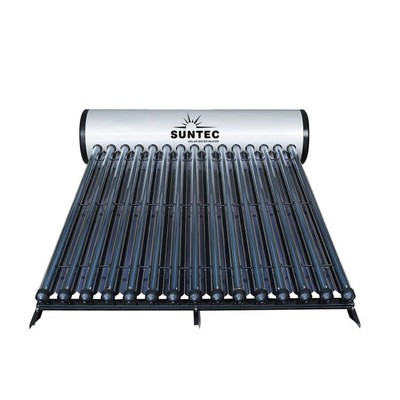

Suntec® 53 Gallon Tube Solar Water Heater
Suntec® 53 Gallon A9H15 Tube Solar Water Heater
Suntec® 53 Gallon A9H15 Tube Solar Water Heater
Suntec® solar water heaters 53 gallon tubes are easy to install and provide decades of hot water. These low maintenance units deliver continuous hot water supply in all weather conditions straight into your homes while providing impressive energy savings at no compromise to your comfort.
Key Features:
Super Energy Saver
Saves up to 40% or more on your electric bill when compared to electric water heaters.
Pressurized Systems
Delivers constant water flow for your comfort
Passive Solar Tracking Technology
Provides 20% more solar exposure than regular solar water heaters.
Adjustable Galvanized Steel Frame Structure
Offers durable and versatile mounting capabilities for both slopes and flat roofs.
High Density Polyurethane Foam Insulated Tank
Provides up to 72 hours of storage of hot water in the absense of sunlight
Auxiliary Electric Heater & Controller (Optional)
Food Grade Stainless steel inner tank
Provides safe and healthy water storage
High efficiency state of the art vaccum tube absorber and heat pipe transfer system
Each replaceable independent
Technical Specifications
TANK A9H-15
Tank Capacity( net) 200L
Inner tank dia.370mm,
Outer tank dia.460mm,
Galvanized steel coated PVDF
Length 1850mm
Insulation high density
polyurethane foam
Working Pressure 7 bar
TUBES
Number of tubes 15
Type Vacuum tube+copper heat pipe+al fin
Tube length & Dia 1800mm, dia.58mm
Glass material Borosilicate
Coating ALN/AOM-SS/CU
Glass thickness 1.6mm
FRAME
Material Galvanized steel 1.5mm
Application Slope / Flat Surfaces
EFFICIENCY
Absorptivity Coefficient 95%
OTHER
Aperture area 2.16m2
System Gross Weight 76kgs
Certification Solar Keymark ( EN 12976-2:2006)
SPARE PARTS
Standard T/P valve, magnesium bar
Option Electric heater, controller
