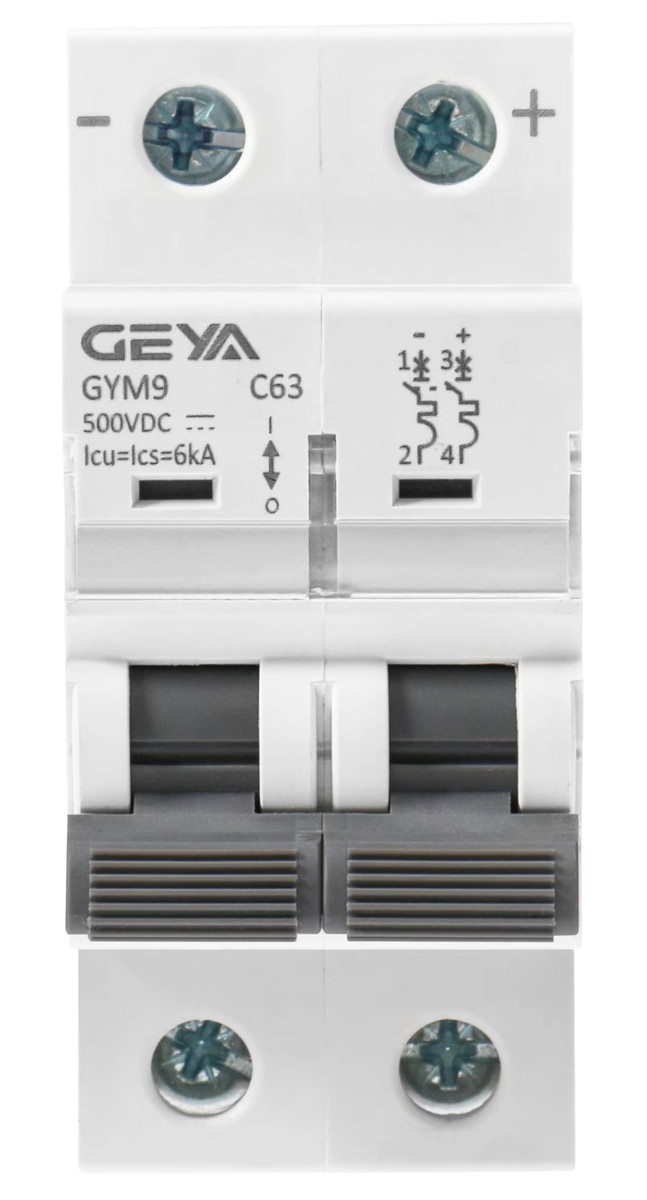

DC Circuit Breaker, 2P Mini Portable DC Circuit Breaker Electronic Protection Equipment GYM9‑C63 1-63A

Item Type: DC Circuit BreakerRated Current: 1-63A

Number of Poles: 2P

Rated Voltage: 2P: 500V

Insulation Voltage: 1000V

Rated Breaking Capacity: 6000A

Rated Impulse Withstand Voltage: 6kV

Power Frequency Withstand Voltage (1min): 2kV

Pollution Degree: 2

Trip Curve: B: 6In ± 20%: C: 12In ± 20%

Mechanical Life: 10000

Mechanical Characteristics:

Contact Indication: Yes

Protection Level: IP20

Adjusting Temperature: 30℃

Ambient Temperature (average Daily Temperature s35℃): -5~+40℃

Storage Temperature: -25-+70℃

Connection Method: Wire and cable / U‑shaped female cable / pin‑shaped female cable .

Wire Connection Specification (up/down): 25mm²18-3

Torsion: 3.0N m, 22

Installation: DIN60715 (35mm) standard rail
